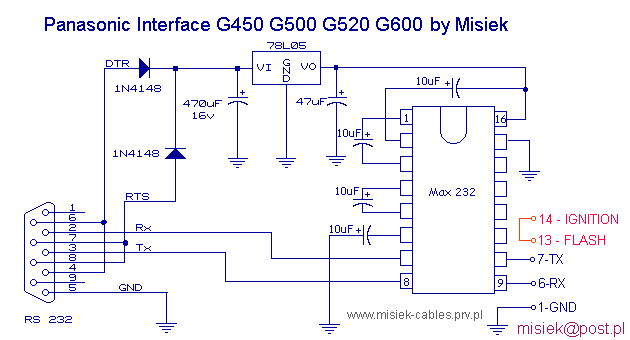

Pin

Name

Function

in/out

1

GND

2

TX AUDIO

3

AUDIO GND

4

HF 0N (L=ON)

5

AOP SENSE (DATA ADAPTOR SELECT)

6

SERIAL UP (UART UP - 9600 bps)

7

SERIAL DOWN (UART DOWN)

8

CHARGE

9

GND

10

RX AUDIO

11

RADIO MUTE (L=MUTE)

12

HF SENSE (L=HF MODE)

13

FLASH (L=WRITE ENABLE)

14

IGNITION (H=ON)

15

LOGIC PWR (H=HANDSET ON)

16

PAON (POWER AMP. CONTROL SIGNAL)

Pin

Name

Function

in/out

1

GND

2

PA_ON

3

nLOGIC_ PWR

4

IGNITION

5

VBAT

6

NHF_SENSE

7

NRADIO_MUTE

8

RX_AUDIO

9

NC

10

EXT_POWER

11

NON_HOOK

12

SERIAL_OUT

13

SERIAL_IN

14

NADP_SENSE

15

nHF_ON

16

GND
