Siemens C30 схема подключения и распиновка |
|

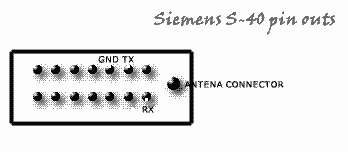

Siemens S-40 схема подключения и распиновка |
|

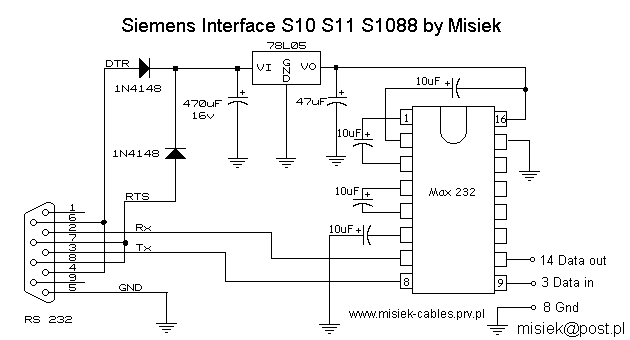

Siemens S10/S11 and S1088 схема подключения и распиновка |
|
Pin |
Name |
Function |
in/out |
|
1 |
LOAD |
Charging voltage |
in |
|
2 |
BATTERY | Battery | out |
|
3 |
DATA IN |
Data received [S6, S8pin=2] |
in |
|
4 |
Antena | Antena | |
|
5 |
??? | ||
|
6 |
??? | ||
|
7 |
MICG | Ground for microphone | in |
|
8 |
GND |
Ground |
|
|
9 |
GND |
Ground |
|
|
10 |
Earphone | Earphone | |
|
11 |
MIC | Microphone input | |
|
12 |
AUD | Loudspeaker | out |
|
13 |
??? | ||
|
14 |
DATA OUT |
Data sent[S6, S8pin=15] |
out |
|
15 |
??? | ||
|
16 |
??? |
|
Siemens SL10 схема подключения и распиновка |
|
Siemens C2x, S25, C,S,M35,A3x, SL45 схема подключения и распиновка |
|
Pin |
Name |
Function |
in/out |
|
1 |
GND |
Ground |
|
|
2 |
SELF-SERVICE |
Recognition/control battery charger |
in/out |
|
3 |
LOAD |
Charging voltage |
in |
|
4 |
BATTERY |
Battery |
out |
|
5 |
DATA OUT |
Data sent |
out |
|
6 |
DATA IN |
Data received |
in |
|
7 |
Z_CLK |
Recognition/control accessories |
|
|
8 |
Z_DATA |
Recognition/control accessories |
|
|
9 |
MICG |
Ground for microphone |
in |
|
10 |
MIC |
Microphone input |
|
|
11 |
AUD |
Loudspeaker |
out |
|
12 |
AUDG |
Ground for external speaker |
